[Design Pattern] Template Design Pattern 본문
Behavioral Design Patterns
- focuses on ways that individuals objects collaborate to achieve a common goal
- each object you make is a piece of a larger solution
- in order for each to work effectively, it needs to have a set purpose
- e.g. each person working at a company
- if the people of the company didn't have any predefined roles, there would be no way to make sure that each of their functions was being executed
- The company would be less effective and not nearly as organized
- e.g. each person working at a company
- Example of behavioral pattern in real world
- 1. Directions on making soup or mixing a drink from powdered ingredients
- Both have similarly described steps to
- 1. get a container
- 2. empty the ingredients into the container
- 3. add water
- 4. stir
- 5. prepare
- The steps are ordered the same way with some identical steps and some different in implementation
- Both have similarly described steps to
- 2. Say you are an executive chef in a large chain of restaurants that serve pasta
- you want dishes to be consistent at all the restaurants location in the chain
- your two most popular dishes are spaghetti with tomato sauce and meatballs and penne noodles with Alfredo sauce and chicken
- Both dishes require:
- 1. boiling water
- 2. cooking the pasta
- 3. adding the sauce
- 4. adding the protein
- 5. garnishing the plate
- some of the steps are implemented differently depending on what dish you are making
- each dish has a different protein, sauce and garnish
- 1. Directions on making soup or mixing a drink from powdered ingredients
Template Method
- defines an algorith's steps generally deferring the implementation of some steps to subclasses (for steps that are unique to each)
- is a behavioral pattern concerned with the assignment of responsibilities
- The template method name must be the same way for both subclasses
- Example
- 1. Self-driving vehicle for car and motorcycle
- The template method for the two subclasses are "driveToDestination()"
- The difference between the two is the way each steer it's wheels
- 1. Self-driving vehicle for car and motorcycle
- Example
- is best used when you can generalize between two classes into a new super class
- Think of it like another technique to use when you notice two separate classes with very similar functionality in order of operations
- after generalization, the objects can be reused more effectively

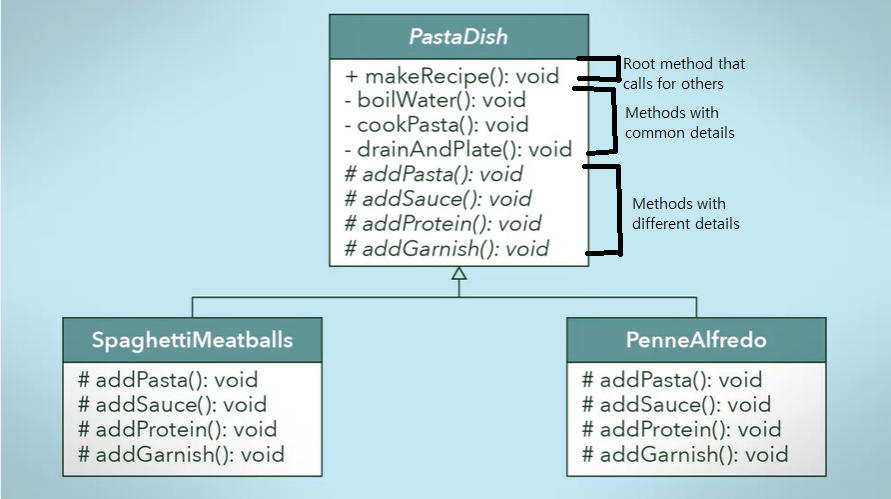

How to Implement UML for Template Method Pattern
- here makeRecipe() method calls for other methods for the steps of the recipe
- some steps are common like
- 1. boiling water
- 2. cooking paster
- 3. drain and plate
- and these are methods of the PastaDish class
- some steps are common like
- Some methods are special for each dish such as:
- 1. addPasta
- 2. addSauce
- 3. addProtein
- 4. addGarnish
- So these are abstract methods of PastaDish class
- In each subclass, they must provide their own versions of addPasta, addSauce, addProtein, and addGarnish
public abstract class PastaDish {
public final void makeRecipe() {
boilWater();
addPaster();
cookPasta();
drainAndPlate();
addSauce();
addProtein();
addGarnish();
}
protected abstract void addPasta();
protected abstract void addSauce();
protected abstract void addProtein();
protected abstract void addGarnish();
private void boilWater() {
System.out.println("Boiling water");
}
}
public class SpaghettiMeatballs extends PastaDish {
protected void addPasta() {
System.out.println("Adding Spaghetti");
}
protected void addSauce() {
System.out.println("Adding tomato sauce");
}
protected void addProtein() {
System.out.println("Adding meatballs");
}
protected void addGarnish() {
System.out.println("Add parmesan cheese");
}
}
public class PenneAlfredo extends PastaDish {
protected void addPasta() {
System.out.println("Adding penne");
}
protected void addSauce() {
System.out.println("Adding alfredo sauce");
}
protected void addProtein() {
System.out.println("Adding chicken");
}
protected void addGarnish() {
System.out.println("Add parsely");
}
}
- Here, final keyword means that the method declared cannot be overriden by subclasses
- this means neither specific subclass can have its own version of the method of same name
- The addPasta, addProtein, addSauce, and addGarnish methods are called in the makeRecipe() tempalte method found in the PastaDish superclass
- makeRecipe() is callable in SpaphettiMeatballs and PenneAlfredo classes
Summary
- Template method pattern can be useful if you have two classes with similar functionalities
- template method pattern can be used to consolidate algorithms into one place
- The difference in the algorithm would be done through calls to abstract methods whose implementations are provided by the subclasses
