[OO Design Foundation] Object Oriented Modeling

Object Oriented Modeling

• involves the practice of representing key concepts through objects in software

Why Object Oriented Modeling

• keeps the code organized, flexible, and reusable.

Design in the Software Process

1.  Expressing Requirements with User Stories

• Is a big part of building a software system determining what the client wants
• One of the technique for expressing requirement is user stories

 Example









• From example above, note that
  • Noun corresponds to object in software
  • Verb helps to identify the requirements the object might have
    • Also helps to identify connection between objects

2.  Organizing to Categories of Objects in Design

• When breaking down an object, there are three categories of objects to consider

  • 1. Entity Objects
    • are most familiar.
      • It corresponds to real world objects
      • Example
        • 1. Chair
    • When you are identifying objects to include and breaking down into smaller objects, you will initially get entity objects
  • 2. Boundary Objects
    • Are objects that sit at the boundary of systems
      • Could be an object that deals with another software system
      • Example
        • 1.  An object that obtains information from the internet
        • 2.  An object that shows information to user and getting their input
    • Any object that deals with another system -  a user, another system, the internet - can be considered a boundary object
  • 3. Control Objects
    • Are objects responsible for coordination
    • Controls other objects
    • Example
      • 1. Mediator
        • Coordinates the acitivity of many different objects so they can stay loosely coupled.
• Organizing software into entity objects, boundary objects, and control objects will allow code to be more flexible, reusable, and maintainable

Design for Quality Attributes

1.  Competing Qualities and Trade-Offs

• Some software designs will involve trade-offs such as
  • a. Performance
  • b. Convenience
  • c. Securituy
• Context is important to determine what choice of solution is right for the balance of qualities.
  • Example
    • 1. A home located in low crime area will need different security needs than one located in a high crime area
  • For softwares, talking to stakeholders helps to understand the context
• Various qualities that influence software design
  • 1. Functional Requirements describe what the system or application is expected to do
    • Example
      • 1. A media app has a functional requirement of being able to download a full length movie
  • 2.  Non-function requirements specifies how well the system or application does what it does
    • Describes how the software runs in a particular situation
    • Example
      • 1. A media app has a non-functional requirement to download a full length movie at specific speed and to play such a movie with a certain memory limit
    • There are other types to satisfy than correctness including
      • 1. resource usage
      • 2. efficiency
      • 3. performance
      • 4. reusability
      • 5. flexibility
      • 6. maintainability.
  • The desired qualities from Functional and non-functional requirements puts contstraints on system's design.

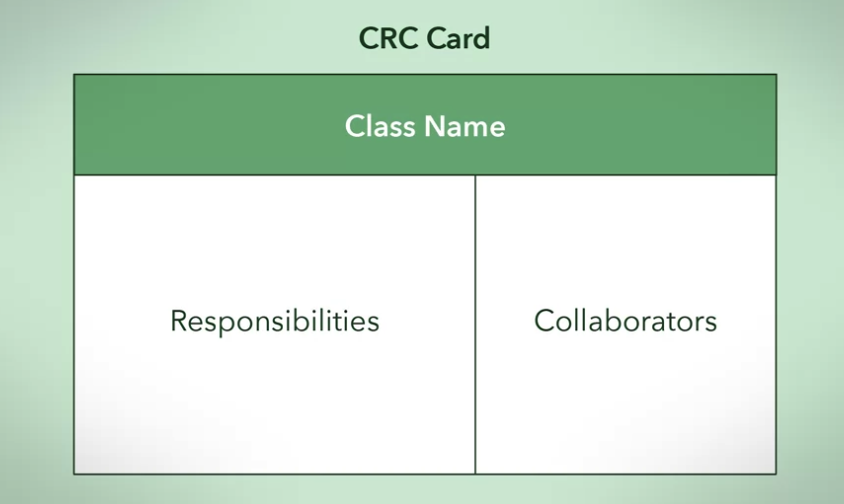

Class Responsibility Collaborator

• Is a tool to mapout structure of the software logically when forming it's design
• completes conceptual design
• Records, organizes and refines components in your design
• Identifies components, connections and responsibilities when forming conceptual design

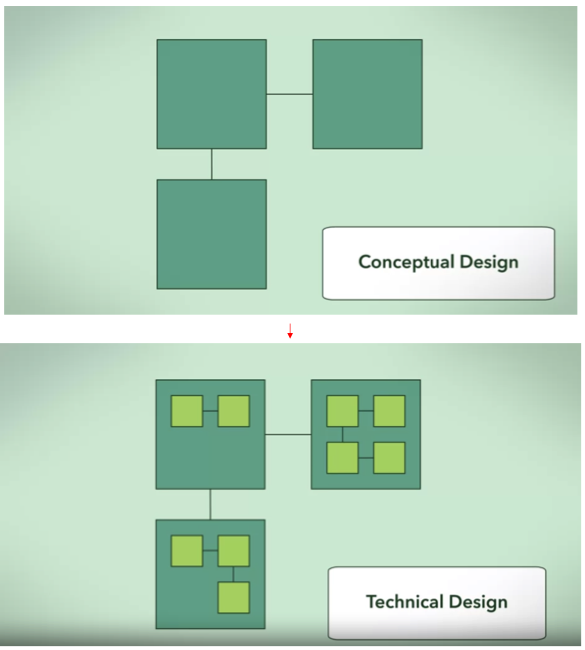

  • conceptual design is where you give your thoughts on how you might satisfy requirements
  • technical design is where how these components and connections are further refined to give them technical details

• is kept small on purpose
  • Forces class to be small enough to be individually described on index cards
• has three sections
  • 1. class name
  • 2. responsibilties
  • 3. collaborators
    • are other classes that the class interacts with to fulfill its responsibilities

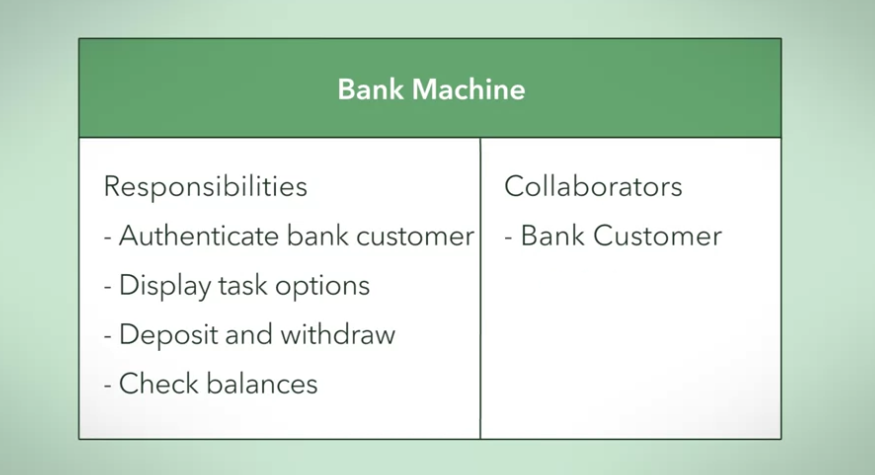

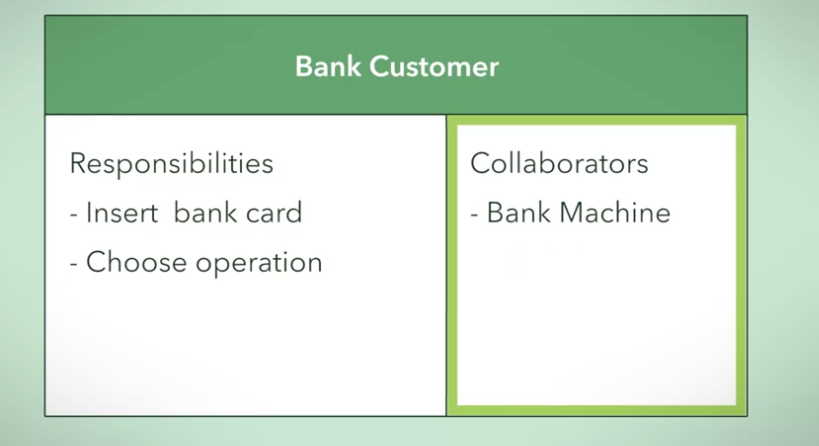

Example: Designing Bank Machine System



From Problems to Solutions with Design

1.  Competing Qualities and Trade-Offs

• Top-down programming : maps the process in the problem to the routines to be called

  • Requires a tree of routines for the eventual solution
  • These routines are implemented in a programming language that supports subroutines (functions, methods)
• Goal of software design is to construct and refine models of all the objects.
  • Focuses identifying entity objects from problem space initially
  • Introduces control objects that receive events and coordinate actions as solution in software arises
  • Also introduces boundary objects that connects to services outside of the system
• Models are often expressed using Unified Modeling Language or UML
• Models serve as a design documentation for software and can be easily mapped to skeletal source code



Four Design Principles

1.  Abstraction

• Is the idea of simplifying a concept in the problem domain to its essentials within some contenxt
• Allows you to better understand a concept by breaking it down into a simplified description that ignores unimportant details
• Example
  • 1. Food
    • In health context, it's nutritional value and not it's cost would be part of a simplified description of food
• Good abstraction
  • 1. Emphasizes the essentials needed for concept and removes details that are not essential
  • 2. Makes sense for the concept's purpose
  • 3. Applies rule of least astonishment.
    • means "abstraction captures the essential attributes and behavior for a concept with no surprises and no definitions that fall behind the scope."
    • Example
      • 1. A Person
        • In context of building a driving app, you would care about the person in context of a driver.
        • In context of building a restaurant app, you would care about the person in the context of a patron
      • 2. A Student
        • In context of academic setting, some essential characteristics are:
          • a. The course they are currently taking
          • b. Their grades in each course
          • c. Their student ID number
      • 3. A Household Cat
        • In context of cat owner, a house cat will have attributes like
          • a. name
          • b. color
          • c. favourite nap location
          • d. microcip number
  • 4. Describes a concept's basic behaviors
    • Example
      • 1. A household cat has following basic behaviors
        • a. napping
        • b. grooming
        • c. catching mice in the house
        • d. eating
        • e. using litter box
      • 2. A household dog has following basic behaviors and attributes
        • Behaviors: grooming, playing with toys, eating, napping, barking, using litter box
        • Attributes: name, microchip number, weight, favourite nap location, favourite food, favourite toy
• Context is critical in forming an abstraction
• If the purpose of the system or problem changes, don't be afraid to update abstraction accordingly.

2.  Encapsulation

• Forms a self-contained object by undling the data and functions it requires to work, exposes an interface whereby other objects can access and use it, and restricts access to certain inside details
• Involves three ideas:
  • It's about making a sort of capsule.
    • Some can be accessed from outside, and some of which cannot
  • 1. Bundle attribute values or data, and behaviors or functions that manipulate those values together into a self-contained object
  • 2. Expose certain data and functions of that objects, which can be accessed from other objects.
  • 3. Restrict sccess to certain data and functions to only within that project
• Defines behaviors through class methods
• Cam expose certain attributes and methods to be accessible to objects in other classes
• Why Encapsulation?
  • 1. Can secure sensitive information
    • Example
      • 1.  A student with a value of degree program and GPA
        • Student class can support queries involving GPA, without revealing actual values of GPA (i.e. whether sstudent is in a good standing or not)
  • 2. Helps with software changes
    • The accessible interface of a class can remain the same, while the implementation of the attributes and methods can change
      • Outside of interface, use using the class not need to know how implementation actually works.
      • Outside of class, the actual steps of retrieving an attribute need not to be known (blackbox thinking)
  • 3. Achieves abstraction barrier
    • Reduces complexity for the user of a class
    • Increases re-usability because another class only needs to know the right method to call the desiredc behavior, what arguments to supply as inputs and what appears as outputs or effects
• Encapsulation is a key design principle in achieving a well-written program.
  • It helps to keep your software modular and easier to work with
  • Keeps classes easy to manage, whjose behaviors are accessed like black boxes

3.  Decomposition

• Is about taking the whole thing and dividing it up into different parts
  • Or, on the flip side, it's about taking a bunch of separate parts and combining them together to form a whole
  • Allows to further breakdown problems into pieces that are easier to understand and solve
  • Example
    • 1. Refridgerator
      • by breaking it down into different parts using decomposition, you can keep the different responsibilities separate
• has a general rule of thumb:
  • 1. Look at the different responsibilities of some whole thing and evaluate how you can separate them into different parts with it's own specific responsibility
    • Each part has a very specific purpose to help achieve the responsibilities of the whole
  • Example
    • 1. A car
      • This can be decomposed into: Wheels, a steering wheel, a windsheld, a gas pedal, engine (and more)
    • 2. A refridgerator
      • This can be decomposed into: cabinet, doors, compressor, coils, freezer, ice-maker, shelves, drawers, and food if inside refridgerator
• How parts interact within the whole:
  • • 1. Fixed / Dynamic
      • A whole might have a fixed or dynamic number of certain type of part
        • Fixed --> it will have exactly that number of elements during the lifetime of the whole object
          • Count does change over time
          • Can be determined by process of elimination
        • Dynamic --> the number of objects vary during the lifetime of the whole object
          • Example
            • 1. Regridgerator is fixed (there is only 1 throughout lifetime)
            • 2. Food in refridgerator are dynamic (part count changes over time)
    • 2. A part containing parts
      • A part can contain another part
        • Example
          • 1. A headlamp that contains bulb
          • 2. A wheel containing tire
  •
    • 2. Lifetime
      • is about how the whole object and the part object relate
        • Example
          • 1. Refridgerator and freezer of one machine
            •  have the same lifetime
            • One cannot exist without the other
          • 2. Car and engine
            • Closely related lifetime
      • of whole object and it's parts doesn't have to be relaterd
        • Example
          • 1. Car and headlamp
            • Car exists throughout lifetime, headlamp doesn't
          • 2. Refridgerator and food items
            • each have different lifetime
    • 3. Sharing
      • is about whole things contain parts that are shared among them at the same time
        • Example
          • 1. Daughter in one family and spouse in another family
            • Two families are separate wholes, but they share the same part
• Decomposition helps to breakdown a problem into smaller pieces

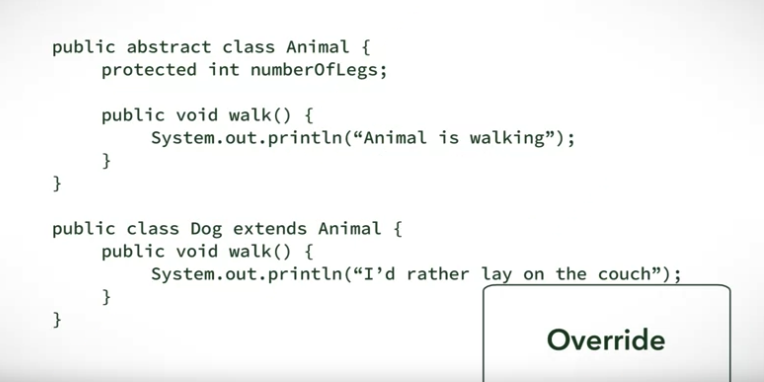

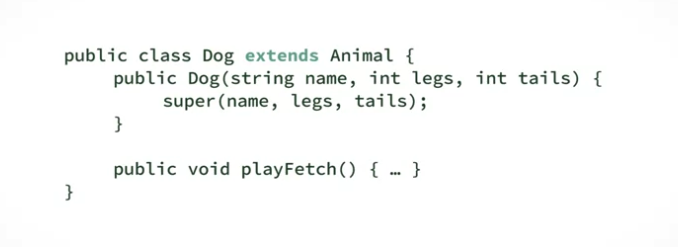

4.  Generalization

• Helps to reduce amount of redundancy when solving problems
• Is used frequently when designing algorithms which are meant to be used to perform same action on different sets of data

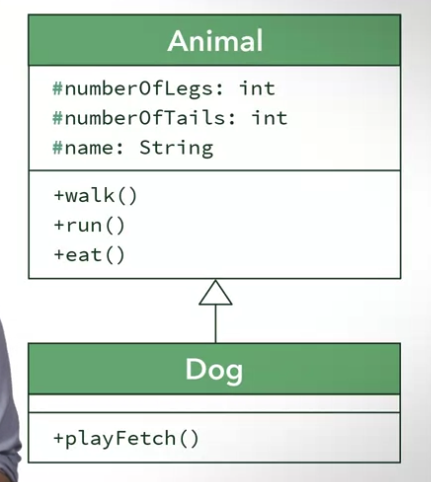

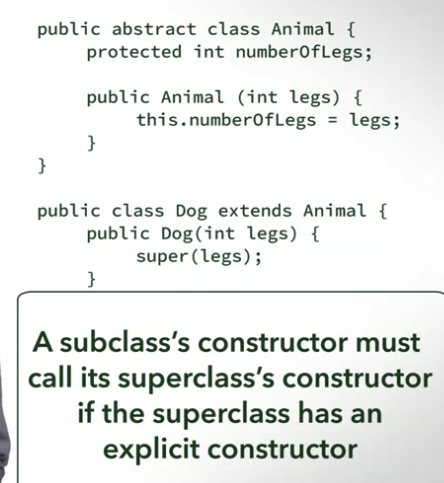

• Can be achieved by classes through inheritance

  • Takes repeated, common, or shared characteristics between two or more classes (child classes) and factor them into another class (parent class)

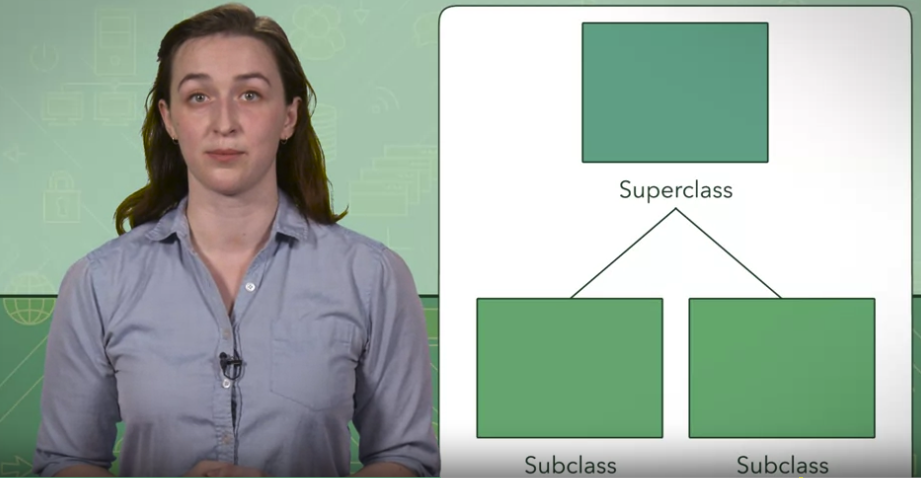

  • Parent class is also called superclass
  • Child class is also called subclass

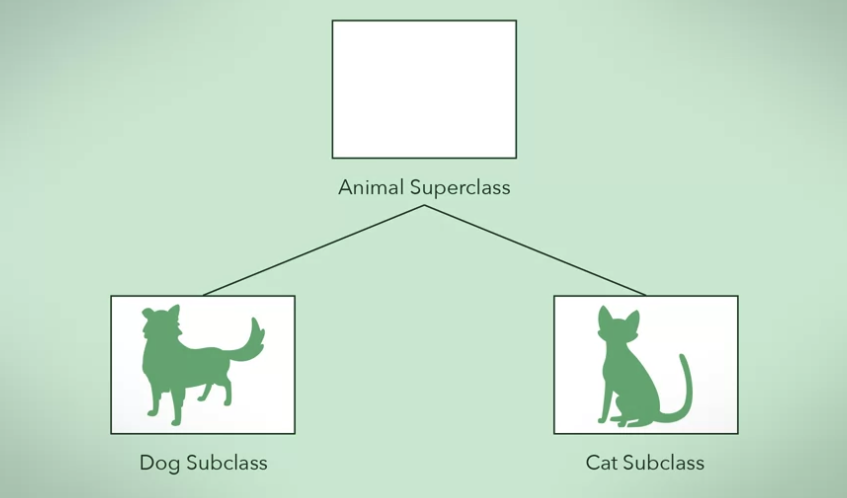

  • Example

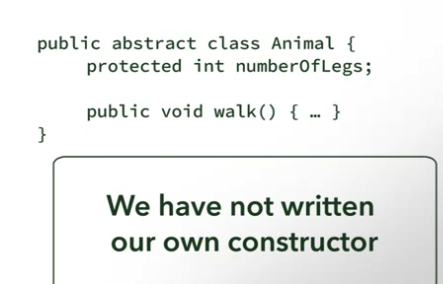

    • 1. Cat and Dog
      • They are both of type animal with tail and 4 legs
      • They both have shared set of behaviors like walking, running and eating





Expressing Design Structure in JAVA & UML Class Diagrams

1. Abstraction in Java and UML

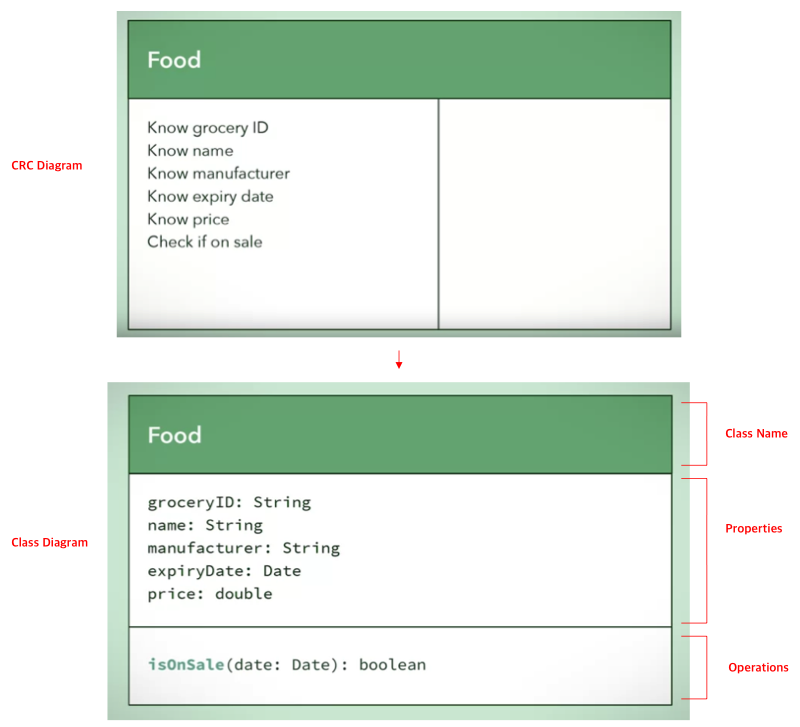

• You could certainly use CRC card to convert to code but there are too many ambiguities that prevent a programmer from translating CRC card to code.

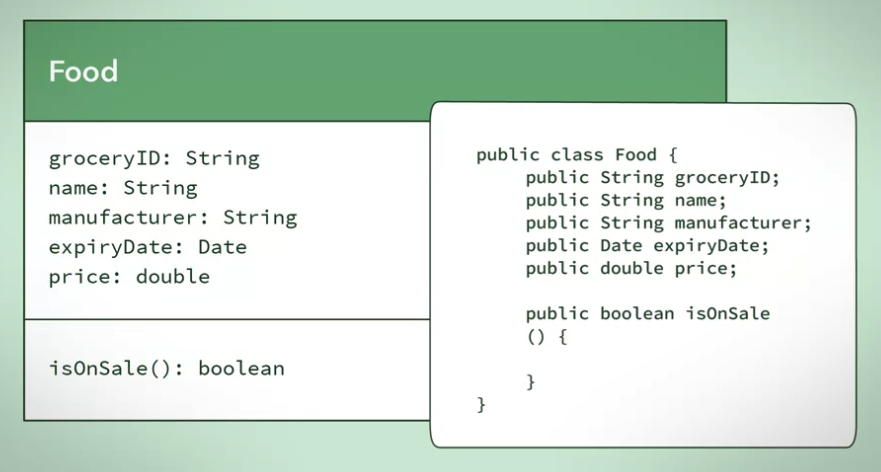

• Properties in class diagram turns into member variables and operations into methods



2. Encapsulation in Java and UML

• '-' represents private attribte / method
  • can only be accessed inside the class
• '+' represents public attribute / method
• Example

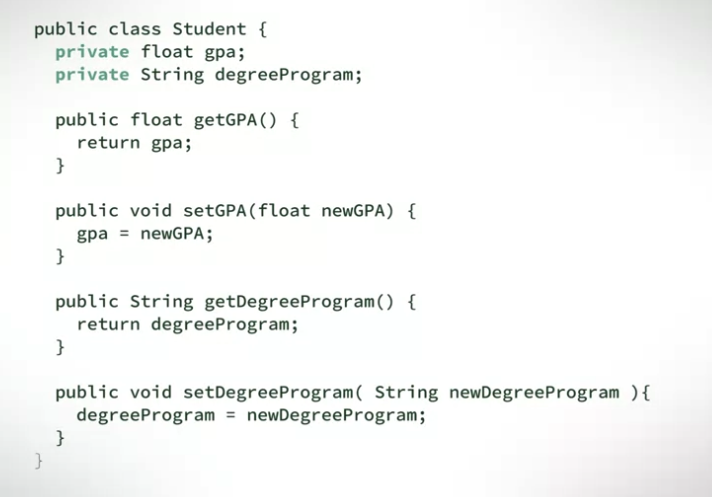

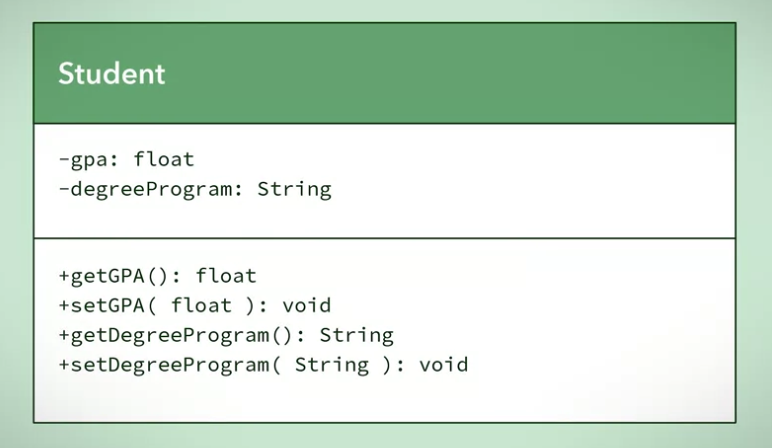

  • 1. Modeling university student

• Getter method are methods that retrieves data and their names

  • Typically begins with get and end with the name of attribute whose value you will be returning
  • Often retrieves private piece of data
• Setter method changes data
  • Typically begins with set and end with the name of the variables you wish to set
  • Are used to set a private attribute in a safe way

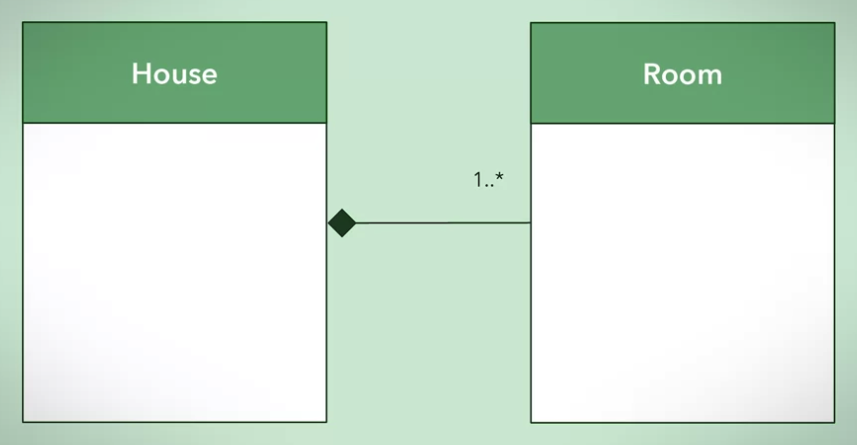

3. Decomposition in Java and UML

• has three types of relationships defining interaction between whole and the parts
  • 1. Association
    • is a very loose interaction between two completely independent objects
    • is "some" relationship
    • means there is a loose relationship between two objects
    • its objects may interact with each other for some time
    • if one object is destroyed, the other can continue to exist
    • there can be any number of items in the relationship
    • one object does not belong to another
    • Example
      • 1. A Person and An Airline


        • 0..* means
          • a. an airline is associated to 0 or more person objects
          • b. a person is associated to 0 or more airline objects
      • 2. Kitten and Yarn

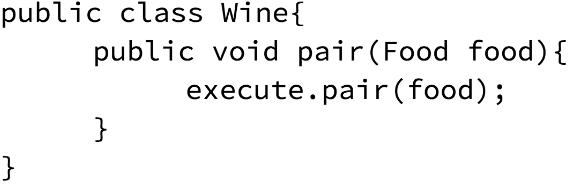

      • 3. Food and Wine

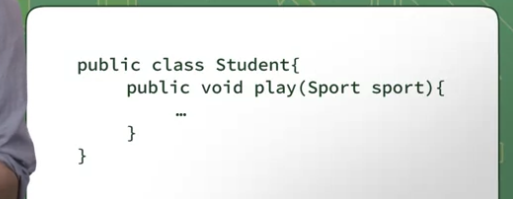

      • 4. Student and Sport

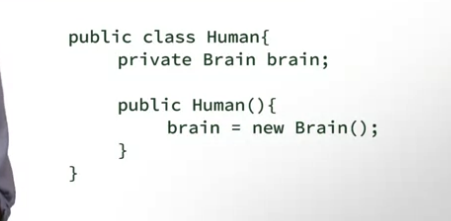

      • 5. NOT Human and Organ

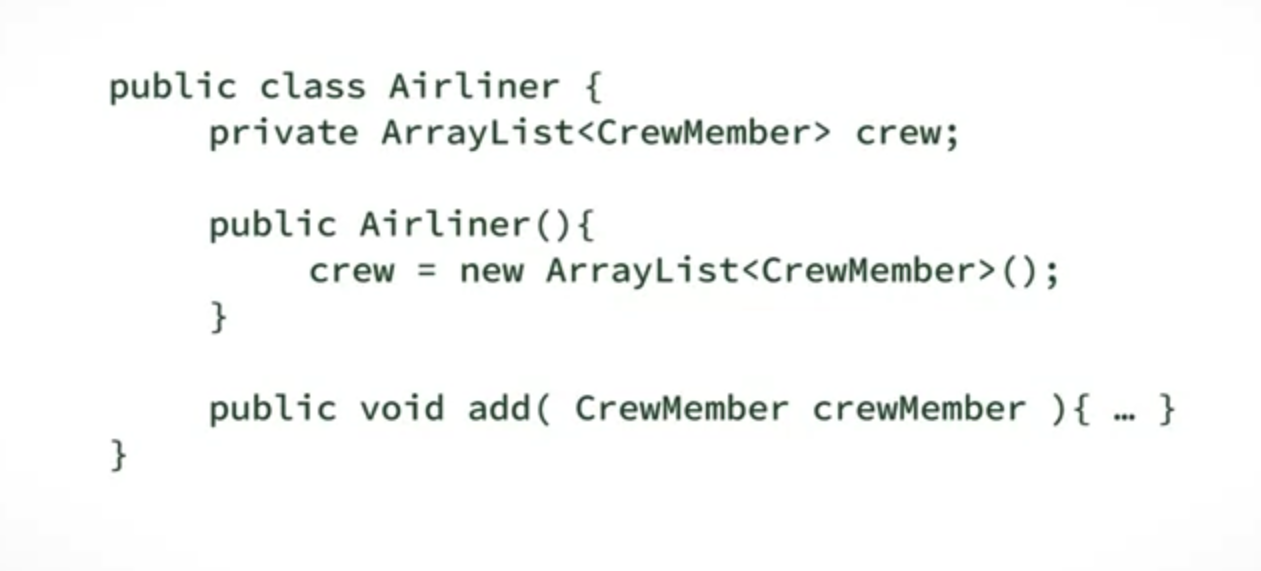

  • 2. Aggregation
    • is where one whole has a part but both can live independently
    • is a "has-a" relationship where a whole has parts that belong to it.
      • this "has-a" relationship is considered weak.
        • Means, although they belong to the whole, they can also exist independently
    • may have sharing of parts among the whole in this relationship
    • Example
      • 1. Airplane and it's crew

  • 3. Composition
    • Is the most dependent of the decomposition relationships
    • is where whole cannot exist without its parts and vice versa
    • Is an exclusive containment of parts, otherwise known as strong "has-a" relationship
      • Means that the whole cannot exist without parts
      • if it loses  any of its parts the whole cease to exist
      • If the whole is destroyed, all of its parts are destroyed
      • usually, you can access the parts through the whole
    • Example
      • 1. House and Room





4. Generalization in Java and UML

• Showing inheritance is done by connecting two classes with a solid lined arrow


  • Superclass is at the head of the arrow
  • Subclass is at the tail of the arrow
• Note that
  • Superclass is always at the top and subclasses are always at the bottom like a family tree
  • Hash symbols means that a variable / method is protected




    • In JAVA, a protected attribute / method means can only be accessed by
      • 1. The encapsulating class itself
      • 2. All subclasses
      • 3. All classes within the same package
    • Abstract keyword in a class declares that it cannot be instantiated
    • Class either has an implicit or explicit constructor
      • 1. Implicit constructor
        • Does not have its own constructor


      • 2. Explicit constructor
        • Its subclass constructor must call it's superclass constructor


    • Method in subclass can override it's superclass


    • Inheritance is declared in JAVA using keyword extends

    • JAVA only allows single implementation inheritance
      • A subclass can only be inherited from one superclass

5. Generalization with Interfaces in Java and UML

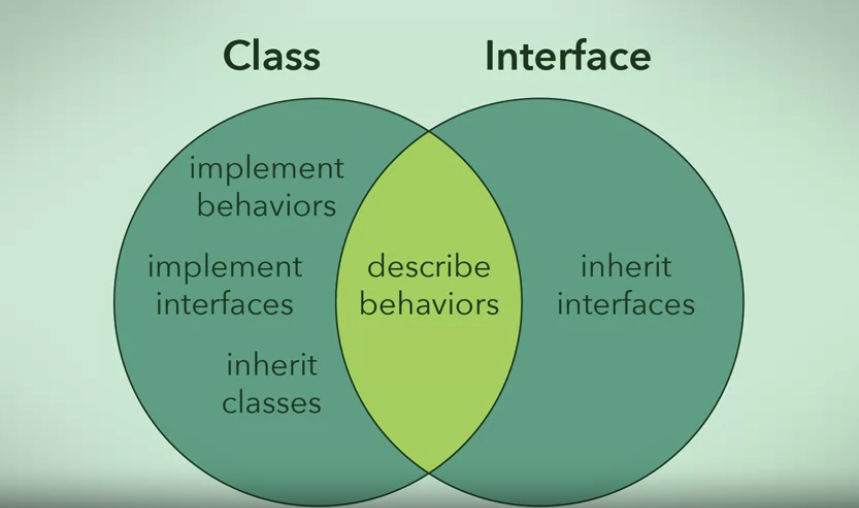

• An interface
  • only declares method signatures, and no constructors, attributes, and method bodies
    • it never implements or describes how these behaviors are performed
    • it does not encapsulate any attribute of the animal
  • specifies the expected behaviors in the method signatures, but does not provide any implementation details
  • is also used for subtyping in JAVA
  • is used to provide a way for related classes to work consistently
  • is indicated by the keyword 'interface' is used in JAVA
    • Standard JAVA naming convention places letter "I" before an acutal name to indicate an interface

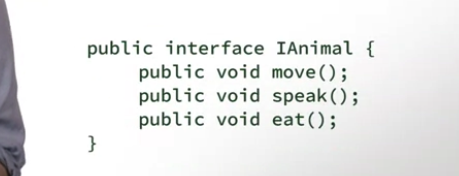

    • Example
      • 1. Animal



  • is implemented in JAVA using the keyword 'implements'

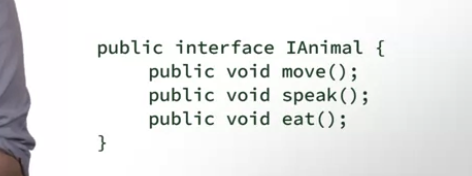

    • Example
      • 1.  Dog and animal interface


  • is drawn in the similar way classes are drawn in UML
    • is noted in UML class diagrams using guilemets, or french quotes
    • is implemented in class and interface in UML using a dotted arrow
      • Class touches the tail of the arrow and the interface touches the head of the arrow

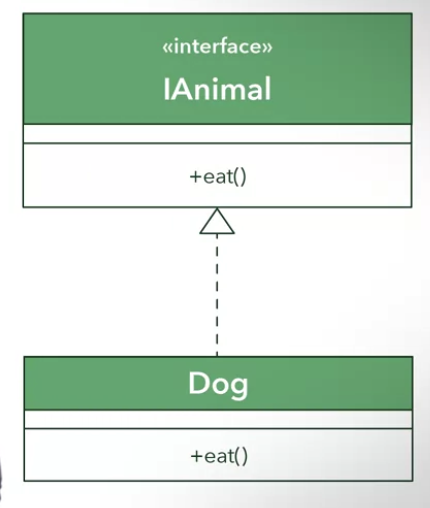

      • Example
        • 1. Animal and dog


  • are a mean in which you can implement polymorphism
    • polymorphism is when two classes have the same description of a behavior, but the implementation of the behavior may be different
    • Example

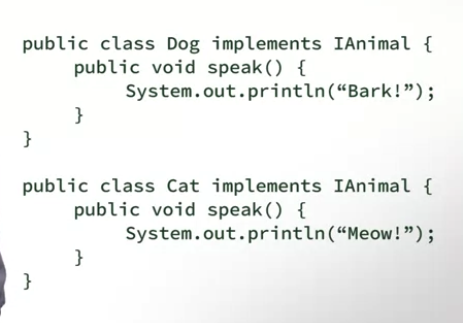

      • 1. Cat and a dog
        • They both speak, but cat meows and dog barks





  • Can inherit from other interfaces
    • interface inheritance should not be abused
      • If you are trying to create a larger interface, interface A should only inherit from interface B if the behaviors in interface A can fully be used as a subtitution for interface B
      • Example

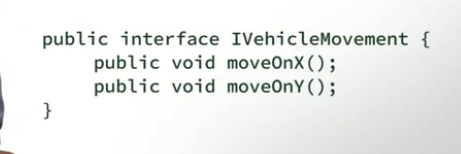

        • 1. Vehicle movement on water and under water
          • Vehicle movement on water is restriceted to 2D (x-axis, and y-axis)
          • Vehicle movement under water requires movement in z-direction
          • we do not want to add extra behaviors to vehicle movement on 2D

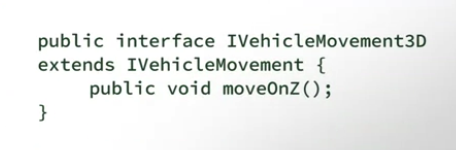

          • So, a second interface that inherits from the first is created


          •
  • Does not run into issues with multiple inheritance
    • Multiple inheritance is where a child class has two or more super classes
    • Multiple inheritance of class is not allowed in JAVA

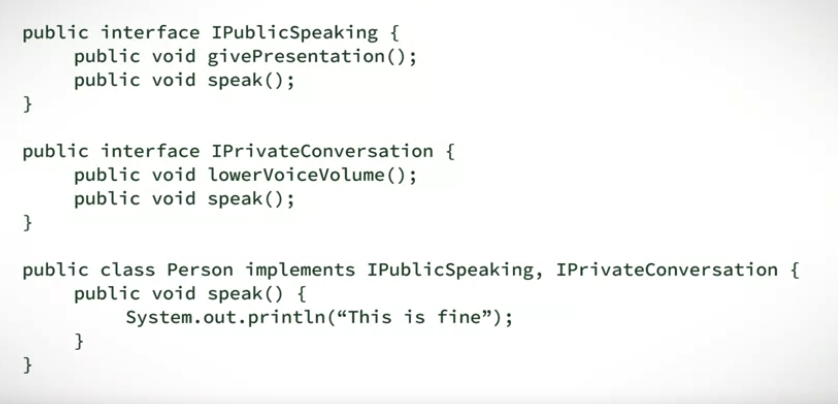

    • Multiple inheritance of interface is allowed in JAVA
    • Example







References

- Object-Oriented Design, University of Alberta: https://www.coursera.org/learn/object-oriented-design
