[Design Pattern] Facade Pattern

Motivation

• As system gets larger, code gets more and more complex
  • This can get confusing for the client classes in your system to use
  • System complexity is not always a sign of poor design
    • The scope of problem you are trying to solve is so large it requires a complex solution
  • But client classes prefer a simplier, and easy to use interaction
  • Example
    • 1. Consider a large home
      • has many subsystems (electrical, sanitation)
      • has complex internal structures (e.g. floor layers)
      • but end user is NOT exposed to internals
      • consumers want it to 'just work'
    • 2. Shopping Online
      • has outward indication that the store you're on has a virtual storefront
        • The outward indicators are used to communicate what types of services are available
        • when an online sales platform sends your order to be fulfilled, works as part of a facade by hiding away all the extra work that needs to be done
          • can fulfill goods and services without having to know how the request is processed

Facade Design Pattern

• Does not add more complexity
  • Simply acts as a point of entry into your subsystem
• Is designed to hide all the complexities in the code
• Is a wrapper class that encapsulates a subsystem in order to hide subsystem's complexity
• Provides a simple, easy to understand / user interface over a large and sophisticated body of code
• Does exactly what a waiter or salesperson would do in real life



Example

• 1. Banking System
  • Without Facade, the customer class would contain instances of
    • a. Checking class
    • b.  Saving class
    • c. Investment class
  • This means that the user is responsible for properly instantiating each of the constituent classes and know all about their different attributes and methods
  • After applying facade, it would look something like the following:
    • BankService is introduced as a facade
    • The customer no longer needs to handle instantiation and complexities of financial management
    • Since the three different accounts all implement the IAccount interface, the bank's service class is effectively wrapping the account interfacing classes, and presenting a simpler front the customer clinet class to use



How to Apply Facade Design Pattern

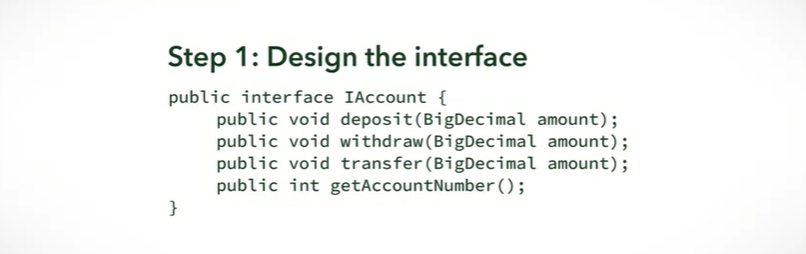

• Step 1. Design the interface

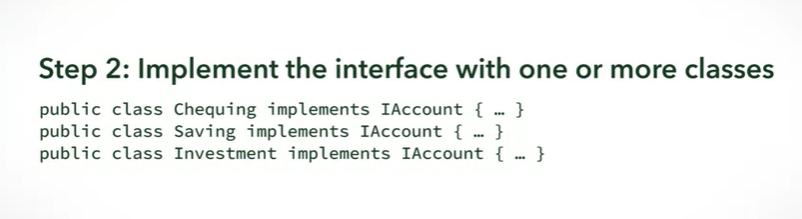

• Step 2: Implement the interface with one or more classes
  • interface allows us to create subtypes which means that Checking, Saving, Investment classes are subtypes of IAccount, and are expected to behave like an IAccount Type
  • A Facade class can be used to wrap all the interfaces and classes for a subsystem
  • It's your decision to know what you want to wrap

• Step 3: Create the Facade class and wrap the classes that implement the interface

public class BankService {
    private Hashtable <int, IAccount> bankAccounts;

    public BankService() {
        this.bankAccounts = new Hashtable<int, IAccount>;
    }

    public int createNewAccount(String type, BigDecimal initAmount) {
        IAccount newAccount = null;
        switch(type) {
            case "chequing":
                newAccount = new Chequing(initAmount);
                break;
            case "saving":
                newAccount = new Saving(initAmount);
                break;
            case "investment":
                newAccount = new Investment(initAmount);
                break;
            default:
                System.out.println("Invalid account type");
                break;
        }

        if (newAccount != null) {
            this.bankAccounts.put(newAccount.getAccountNumber(), newAccount);
            return newAccount.getAccountNumber();
        }

        return -1;
    }

    public void transferMoney(int to, int from, BigDecimal amount) {
        IAccount toAccount = this.bankAccounts.get(to);
        IAccount fromAccount = this.bankAccounts.get(from);
        fromAccount.transfer(toAccount, amount);
    }
}

• Step 4: Use the Facade class to access the subsystem
  • Now that we have facade in place, client class can access its accounts through the BankService

public class Customer {
    public static void main(String args[]) {
        BankService myBankService = new BankService();

        int mySaving = myBankService.createNewAccount("saving", new BigDecimal(500.00));

        int myInvestment = myBankService.createNewAccount("investment", new BigDecimal(1000.00));

        myBankService.transferMoney(mySaving, myInvestment, new BigDecimal(300.00));
    }
}



Summary

• Facade design pattern
  • Is a mean to hide the complexity of a subsystem by encapsulating it behind a unifying wrapper called a facade class
  • Removes the need for client classes to manage a subsystem on their own, resulting in less coupling between the subsystem and the client classes
  • Handles instantiation and redirection of tasks to the appropriate class within the subsystem
  • Provides client classes with a simplified interface for the subsystem.
  • Acts simply as a point of entry to a subsystem and does not add more functionality to the subsystem



FAQs

• 1. What is the difference between abstract factory design pattern and facade design pattern?
  • The Facade design pattern is used when you want to hide an implementation
  • The abstract factory pattern is used when you want to hide the details on constructing instances
