[Design Pattern] Adapter Pattern

Introduction

• Thereis a common issue when the pre-existing system needs to incorprate third-party libraries or needs to connect to other systems
• Adapter design pattern
  • Are frequently used because the output of one system may not conform to the expected input of another system
  • Helps to facilitate communication between two existing systems by providing a compatible interface

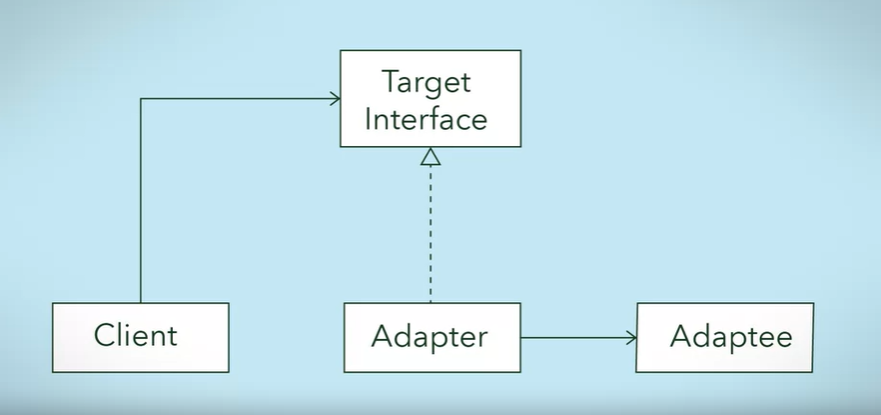

Adapter Pattern

• Is composed of several parts:
  • 1. Client Class
    • Is a part of your system that wants to use a third-party library or external systems
  • 2. Adaptee Class
    • is the third-party library or external system to be used
  • 3. Adapter
    • sits between the client class and the adaptee
    • implements a target interface which is the interface that the client will use
• How it works:
  • a. The client sents a request to the adapter using the target interface
  • b. The adapter translates the request into a message that the adaptee will understand
  • c. Once the translation is finished, it will send the translated request to the adaptee

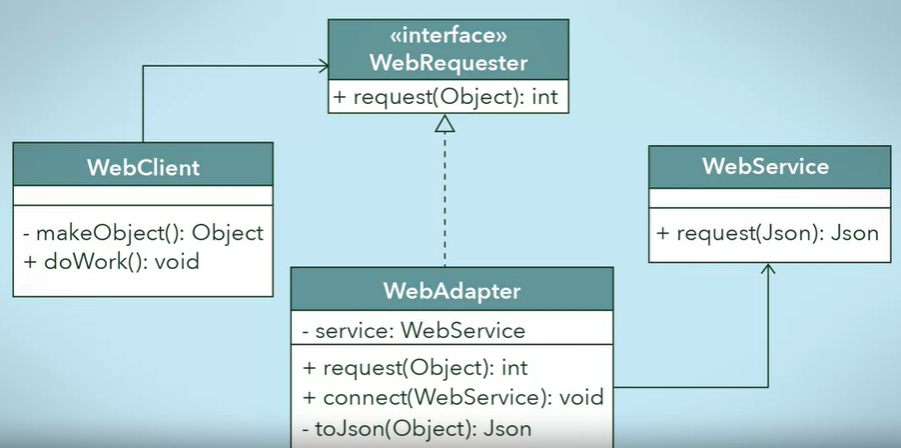

Example

• 1. Preexisting WebClient that we want to use to talk to another WebService
  • A WebClient expects to send any object into request but the service only supports a Json Object
  • An adapter needs to be used to convert from object request into JSON object.



How to Construct Adapter Pattern (based on above example)

• Step 1: Design the target interface
  • The interface is what your adapter class will be implementing for your client class to use

public interface WebRequester {
    public int request(Object);
}

• Step 2: Implement the target interface with the adapter class

public class WebAdapter implements WebRequester {
    private WebService service;

    public void connect(WebService currentService) {
        this.service = currentService
    }

    public int request(Object request) {
        Json result = this.toJson(request);
        Json response = service.request(result);
        if (response != null) {
            return 200;
        }
        return 500;
    }

    private Json toJson(object input) {...}
}



• Step 3: Send the request from the client to the adapter using the target interface

public class WebClient {
    private WebRequester webRequester;

    public WebClient (WebRequester webRequester) {
        this.webRequester = webRequester;
    }

    private Object makeObject() {....}

    public void doWork() {
        Object object = makeObject();
        int status = webRequester.request(object);

        if (status == 200) {
            System.out.println("OK");
        } else {
            System.out.println("Not OK");
        }
    }
}

• Step 4: In the main program, instantiate the
  • 1. Adapter (WebAdapter)
  • 2. Adaptee (WebService)
    • Is hidden from the client by the wrapping adapter class
  • 3. Client (WebClient)

public class Program {
    public static void main (String args[]) {
        String webHost = "Host: https://google.com/n/r";
        Webservice service = new WebService(webHost);
        WebAdapter adapter = new WebAdapter();
        adapter.connect(service);
        WebClient client = new WebClient(adapter);
        client.doWork();
    }
}



Note

• Remember that an adapter is meant to:
  • Wrap the adaptee and expose a target interface to the client
  • Indirectly change the adaptee's interface into one that the client is expecting by implementing a target interface
  • Indirectly translate the client's request into one that the adaptee is expecting
  • Reuse an existing adaptee with an incompatible interface
